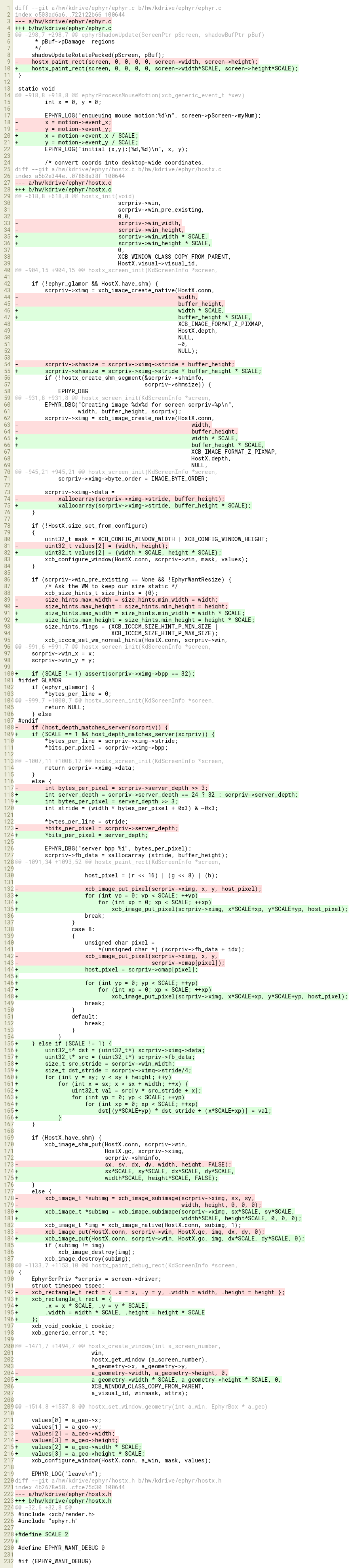

diff --git a/hw/kdrive/ephyr/ephyr.c b/hw/kdrive/ephyr/ephyr.c
index c503ad6a6..722122b66 100644
--- a/hw/kdrive/ephyr/ephyr.c
+++ b/hw/kdrive/ephyr/ephyr.c
@@ -298,7 +298,7 @@ ephyrShadowUpdate(ScreenPtr pScreen, shadowBufPtr pBuf)
* pBuf->pDamage regions
*/
shadowUpdateRotatePacked(pScreen, pBuf);
- hostx_paint_rect(screen, 0, 0, 0, 0, screen->width, screen->height);
+ hostx_paint_rect(screen, 0, 0, 0, 0, screen->width*SCALE, screen->height*SCALE);
}
static void
@@ -918,8 +918,8 @@ ephyrProcessMouseMotion(xcb_generic_event_t *xev)
int x = 0, y = 0;
EPHYR_LOG("enqueuing mouse motion:%d\n", screen->pScreen->myNum);
- x = motion->event_x;
- y = motion->event_y;
+ x = motion->event_x / SCALE;
+ y = motion->event_y / SCALE;
EPHYR_LOG("initial (x,y):(%d,%d)\n", x, y);
/* convert coords into desktop-wide coordinates.
diff --git a/hw/kdrive/ephyr/hostx.c b/hw/kdrive/ephyr/hostx.c
index a5b2e344e..07868a38f 100644
--- a/hw/kdrive/ephyr/hostx.c
+++ b/hw/kdrive/ephyr/hostx.c
@@ -618,8 +618,8 @@ hostx_init(void)
scrpriv->win,
scrpriv->win_pre_existing,
0,0,
- scrpriv->win_width,
- scrpriv->win_height,
+ scrpriv->win_width * SCALE,
+ scrpriv->win_height * SCALE,
0,
XCB_WINDOW_CLASS_COPY_FROM_PARENT,
HostX.visual->visual_id,
@@ -904,15 +904,15 @@ hostx_screen_init(KdScreenInfo *screen,
if (!ephyr_glamor && HostX.have_shm) {
scrpriv->ximg = xcb_image_create_native(HostX.conn,
- width,
- buffer_height,
+ width * SCALE,
+ buffer_height * SCALE,
XCB_IMAGE_FORMAT_Z_PIXMAP,
HostX.depth,
NULL,
~0,
NULL);
- scrpriv->shmsize = scrpriv->ximg->stride * buffer_height;
+ scrpriv->shmsize = scrpriv->ximg->stride * buffer_height * SCALE;
if (!hostx_create_shm_segment(&scrpriv->shminfo,
scrpriv->shmsize)) {
EPHYR_DBG
@@ -931,8 +931,8 @@ hostx_screen_init(KdScreenInfo *screen,
EPHYR_DBG("Creating image %dx%d for screen scrpriv=%p\n",
width, buffer_height, scrpriv);
scrpriv->ximg = xcb_image_create_native(HostX.conn,
- width,
- buffer_height,
+ width * SCALE,
+ buffer_height * SCALE,
XCB_IMAGE_FORMAT_Z_PIXMAP,
HostX.depth,
NULL,
@@ -945,21 +945,21 @@ hostx_screen_init(KdScreenInfo *screen,
scrpriv->ximg->byte_order = IMAGE_BYTE_ORDER;
scrpriv->ximg->data =
- xallocarray(scrpriv->ximg->stride, buffer_height);
+ xallocarray(scrpriv->ximg->stride, buffer_height * SCALE);
}
if (!HostX.size_set_from_configure)
{
uint32_t mask = XCB_CONFIG_WINDOW_WIDTH | XCB_CONFIG_WINDOW_HEIGHT;
- uint32_t values[2] = {width, height};
+ uint32_t values[2] = {width * SCALE, height * SCALE};
xcb_configure_window(HostX.conn, scrpriv->win, mask, values);
}
if (scrpriv->win_pre_existing == None && !EphyrWantResize) {
/* Ask the WM to keep our size static */
xcb_size_hints_t size_hints = {0};
- size_hints.max_width = size_hints.min_width = width;
- size_hints.max_height = size_hints.min_height = height;
+ size_hints.max_width = size_hints.min_width = width * SCALE;
+ size_hints.max_height = size_hints.min_height = height * SCALE;
size_hints.flags = (XCB_ICCCM_SIZE_HINT_P_MIN_SIZE |
XCB_ICCCM_SIZE_HINT_P_MAX_SIZE);
xcb_icccm_set_wm_normal_hints(HostX.conn, scrpriv->win,
@@ -991,6 +991,7 @@ hostx_screen_init(KdScreenInfo *screen,
scrpriv->win_x = x;
scrpriv->win_y = y;
+ if (SCALE != 1) assert(scrpriv->ximg->bpp == 32);
#ifdef GLAMOR
if (ephyr_glamor) {
*bytes_per_line = 0;
@@ -999,7 +1000,7 @@ hostx_screen_init(KdScreenInfo *screen,
return NULL;
} else
#endif
- if (host_depth_matches_server(scrpriv)) {
+ if (SCALE == 1 && host_depth_matches_server(scrpriv)) {
*bytes_per_line = scrpriv->ximg->stride;
*bits_per_pixel = scrpriv->ximg->bpp;
@@ -1007,11 +1008,12 @@ hostx_screen_init(KdScreenInfo *screen,
return scrpriv->ximg->data;
}
else {
- int bytes_per_pixel = scrpriv->server_depth >> 3;
+ int server_depth = scrpriv->server_depth == 24 ? 32 : scrpriv->server_depth;
+ int bytes_per_pixel = server_depth >> 3;
int stride = (width * bytes_per_pixel + 0x3) & ~0x3;
*bytes_per_line = stride;
- *bits_per_pixel = scrpriv->server_depth;
+ *bits_per_pixel = server_depth;
EPHYR_DBG("server bpp %i", bytes_per_pixel);
scrpriv->fb_data = xallocarray (stride, buffer_height);
@@ -1091,34 +1093,52 @@ hostx_paint_rect(KdScreenInfo *screen,
host_pixel = (r << 16) | (g << 8) | (b);
- xcb_image_put_pixel(scrpriv->ximg, x, y, host_pixel);
+ for (int yp = 0; yp < SCALE; ++yp)
+ for (int xp = 0; xp < SCALE; ++xp)
+ xcb_image_put_pixel(scrpriv->ximg, x*SCALE+xp, y*SCALE+yp, host_pixel);
break;
}
case 8:
{
unsigned char pixel =
*(unsigned char *) (scrpriv->fb_data + idx);
- xcb_image_put_pixel(scrpriv->ximg, x, y,
- scrpriv->cmap[pixel]);
+ host_pixel = scrpriv->cmap[pixel];
+
+ for (int yp = 0; yp < SCALE; ++yp)
+ for (int xp = 0; xp < SCALE; ++xp)
+ xcb_image_put_pixel(scrpriv->ximg, x*SCALE+xp, y*SCALE+yp, host_pixel);
break;
}
default:
break;
}
}
+ } else if (SCALE != 1) {
+ uint32_t* dst = (uint32_t*) scrpriv->ximg->data;
+ uint32_t* src = (uint32_t*) scrpriv->fb_data;
+ size_t src_stride = scrpriv->win_width;
+ size_t dst_stride = scrpriv->ximg->stride/4;
+ for (int y = sy; y < sy + height; ++y)
+ for (int x = sx; x < sx + width; ++x) {
+ uint32_t val = src[y * src_stride + x];
+ for (int yp = 0; yp < SCALE; ++yp)
+ for (int xp = 0; xp < SCALE; ++xp)
+ dst[(y*SCALE+yp) * dst_stride + (x*SCALE+xp)] = val;
+ }
}
if (HostX.have_shm) {
xcb_image_shm_put(HostX.conn, scrpriv->win,
HostX.gc, scrpriv->ximg,
scrpriv->shminfo,
- sx, sy, dx, dy, width, height, FALSE);
+ sx*SCALE, sy*SCALE, dx*SCALE, dy*SCALE,
+ width*SCALE, height*SCALE, FALSE);
}
else {
- xcb_image_t *subimg = xcb_image_subimage(scrpriv->ximg, sx, sy,
- width, height, 0, 0, 0);
+ xcb_image_t *subimg = xcb_image_subimage(scrpriv->ximg, sx*SCALE, sy*SCALE,
+ width*SCALE, height*SCALE, 0, 0, 0);
xcb_image_t *img = xcb_image_native(HostX.conn, subimg, 1);
- xcb_image_put(HostX.conn, scrpriv->win, HostX.gc, img, dx, dy, 0);
+ xcb_image_put(HostX.conn, scrpriv->win, HostX.gc, img, dx*SCALE, dy*SCALE, 0);
if (subimg != img)
xcb_image_destroy(img);
xcb_image_destroy(subimg);
@@ -1133,7 +1153,10 @@ hostx_paint_debug_rect(KdScreenInfo *screen,
{
EphyrScrPriv *scrpriv = screen->driver;
struct timespec tspec;
- xcb_rectangle_t rect = { .x = x, .y = y, .width = width, .height = height };
+ xcb_rectangle_t rect = {
+ .x = x * SCALE, .y = y * SCALE,
+ .width = width * SCALE, .height = height * SCALE
+ };
xcb_void_cookie_t cookie;
xcb_generic_error_t *e;
@@ -1471,7 +1494,7 @@ hostx_create_window(int a_screen_number,
win,
hostx_get_window (a_screen_number),
a_geometry->x, a_geometry->y,
- a_geometry->width, a_geometry->height, 0,
+ a_geometry->width * SCALE, a_geometry->height * SCALE, 0,
XCB_WINDOW_CLASS_COPY_FROM_PARENT,
a_visual_id, winmask, attrs);
@@ -1514,8 +1537,8 @@ hostx_set_window_geometry(int a_win, EphyrBox * a_geo)
values[0] = a_geo->x;
values[1] = a_geo->y;
- values[2] = a_geo->width;
- values[3] = a_geo->height;
+ values[2] = a_geo->width * SCALE;
+ values[3] = a_geo->height * SCALE;
xcb_configure_window(HostX.conn, a_win, mask, values);
EPHYR_LOG("leave\n");
diff --git a/hw/kdrive/ephyr/hostx.h b/hw/kdrive/ephyr/hostx.h
index 4b2678e58..cfce75d30 100644
--- a/hw/kdrive/ephyr/hostx.h
+++ b/hw/kdrive/ephyr/hostx.h
@@ -32,6 +32,8 @@
#include <xcb/render.h>
#include "ephyr.h"
+#define SCALE 2
+
#define EPHYR_WANT_DEBUG 0
#if (EPHYR_WANT_DEBUG)
